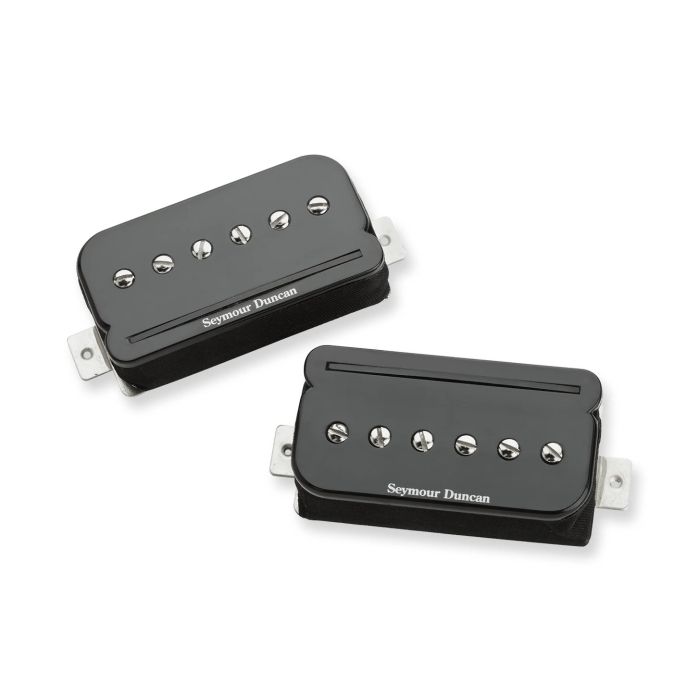

Seymour Duncan P-Rails with LP Triple Shot Set, Black Pickup

Seymour Duncan P-Rails with LP Triple Shot Set, Black Pickup

The Seymour Duncan P-Rails system eliminates the compromise between versatility and simplicity. Hand-built in Santa Barbara, California, this pre-wired set gives Les Paul players access to 24 distinct tonal combinations without a single rewire—all switchable from your guitar's standard 3-way toggle. The arched LP Triple Shot mounting rings install into existing cavities and deliver the flexibility that working musicians need for everything from studio sessions to varied setlists.

Tonal Flexibility & Electronics

Three voicings live in each pickup position: traditional humbucking depth, classic P-90 bark, and bright single-coil rails. The neck pickup uses RWRP (reverse wind, reverse polarity) winding to kill hum when both pickups blend, while carefully spec'd DC resistance values optimize each mode—ranging from 5.60KΩ on the neck rails to 18.80KΩ on the bridge humbucker. On a live stage, you get thick, mid-forward tones for rhythm work and articulate, cutting voicings for solos, all without touching a soldering iron or swapping gear mid-gig.

Construction & Components

Alnico 5 bar magnets and vacuum wax potting ensure reliable performance and eliminate microphonic squeal—critical for touring and tight venues. The 4-conductor leadwire configuration supports the switching system, while the black finish sits cleanly with most Les Paul setups. Both bridge and neck pickups arrive as a complete, pre-wired assembly ready for direct installation into compatible instruments.

Key Features

• Hand-built in Santa Barbara, CA
• LP (arched) Triple Shot mounting rings with 2-position switches
• 24 unique tonal combinations with standard 3-way toggle switch
• Pair of Alnico 5 bar magnets
• Vacuum wax potted for squeal-free operation
• Neck pickup RWRP (reverse wind, reverse polarity)
• 4-conductor leadwire
• Neck humbucking: 12.87KΩ DC Resistance, 4.6KHz resonant peak
• Neck P-90: 7.25KΩ, 3.6KHz resonant peak
• Neck Rails: 5.60KΩ, 7.0KHz resonant peak
• Bridge humbucking: 18.80KΩ, 3.0KHz resonant peak
• Pre-wired set with bridge and neck pickups included

This system combines Seymour Duncan's build reputation with switching that actually works, giving you three distinct sonic territories from one pickup pair—no downtime, no complexity.
