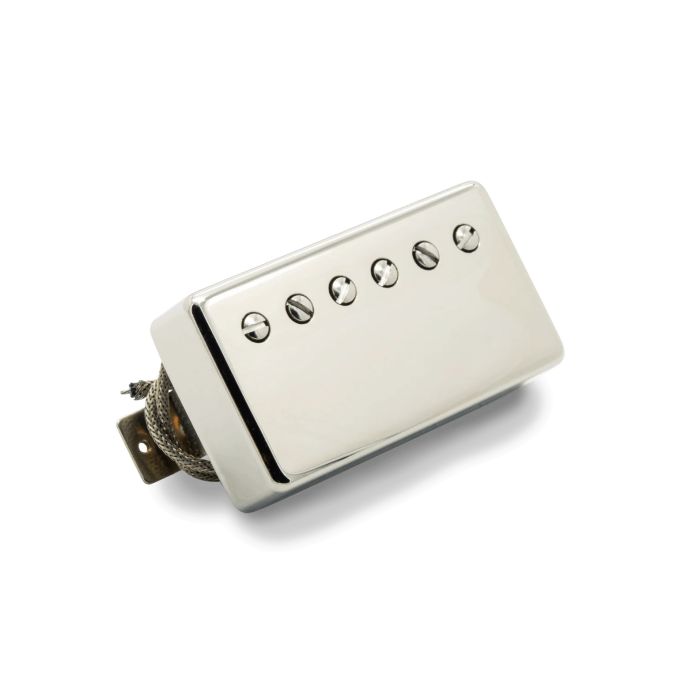

Seymour Duncan Retro Antiquity Humbucker Neck Pickup

Seymour Duncan Antiquity Humbucker Neck Pickup

The Antiquity Humbucker Neck delivers the warm, articulate response of a vintage-era PAF without sacrificing clarity or definition. This pickup balances woody midrange character with controlled output, making it equally at home in jazz, blues, and classic rock applications. The nickel silver cover and Alnico 2 magnet structure preserve the nuanced dynamics that defined great guitar tones from the golden age of electric instruments.

Tonal Character & Output

An 8.6K DC resistance and 3.975 H inductance yield a warm, vintage-voiced response with a 2.29 kHz resonant peak that favors midrange articulation over high-end gloss. This spec set produces full, singing sustain without muddy low-end bloom—essential for supporting lead work or holding down rhythm with note-to-note clarity across the fretboard, whether cutting through a live mix or sitting tight in the pocket during rehearsal.

Construction & Materials

Built with 42 AWG plain enamel magnet wire, a 2.5-inch Alnico 2 bar magnet, and butyrate bobbins, this pickup maintains period-correct construction methods. The nickel silver cover and nickel silver bottom plate with long mounting legs ensure stable installation and authentic tonal character; notably, this design is not wax potted, preserving natural microphonic response that translates responsively through your amp in live settings.

Key Features

• DC Resistance: 8.6K (neck position)
• Inductance: 3.975 H
• Resonant Peak: 2.29 kHz
• Magnet: 2.5-inch Alnico 2 bar
• Wire: 42 AWG plain enamel magnet wire
• Cover: Nickel silver
• Bottom Plate: Nickel silver with long mounting legs
• Bobbins: Butyrate construction
• Lead Wire: Single conductor push-back braided
• Not wax potted for natural microphonic character
• Width: 1.494"; Length: 2.750"; Max height with leg: 1.095"
• Mounting ring: 1.756" × 3.537" with 0.235" max height

The Antiquity Humbucker Neck bridges vintage authenticity with reliable modern manufacturing, delivering the balanced, expressive voice that working players depend on in a neck-position humbucker.
