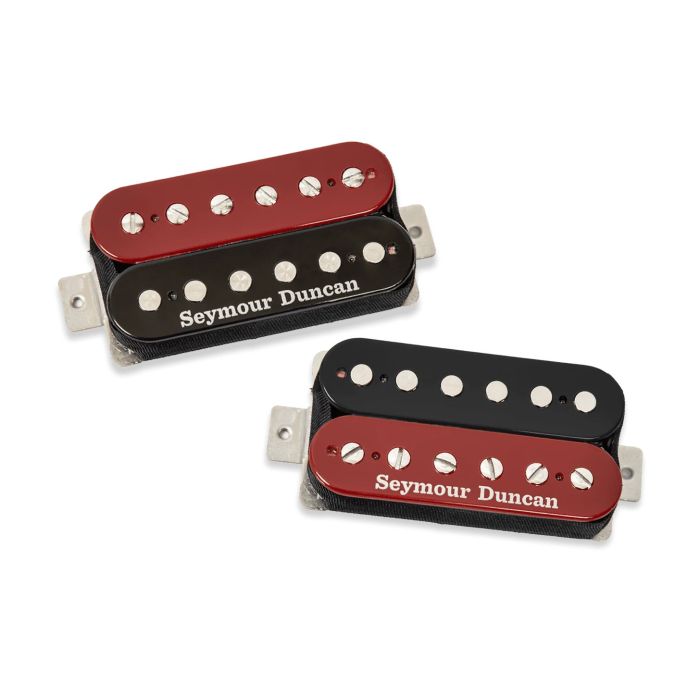

Seymour Duncan SH-4/SH-2n Hot Rodded Set, Red/Black Pickup

Seymour Duncan SH-4/SH-2n Hot Rodded Set, Red/Black Pickup

This matched pair puts the aggressive output and clarity of the SH-4 JB bridge pickup together with the articulate, balanced response of the SH-2n Jazz Model neck pickup. The combination balances high-output punch with definition across the frequency spectrum, cutting through live situations with authority while staying tight enough for studio tracking or rehearsal room reliability.

Tonal Character & Performance

The SH-4 bridge produces a 16.4 kΩ DC resistance with a 5.5 kHz resonant peak and EQ curve of 5/6/8 (Bass/Mid/Treble), delivering aggressive midrange articulation and controlled presence peak that sits well in a band mix. The SH-2n neck offers a warmer, more refined voice with 7.72 kΩ resistance, a 8 kHz resonant peak, and 5/3/9 EQ balance, providing smooth lead tones and defined clean playing that won't disappear in the mix.

Construction & Wiring

Both pickups feature Alnico 5 magnets and are wax potted to eliminate microphonic squeal and feedback—essential for stage reliability and feedback-free operation. The set ships with 4-conductor wiring on both the bridge and neck models, enabling series/parallel switching and other wiring configurations on compatible instruments. Hand-built in the Santa Barbara, CA factory, each pickup meets Seymour Duncan's precision manufacturing standards for consistent performance night after night.

Key Features

• SH-4 JB bridge pickup with 16.4 kΩ DC resistance
• SH-2n Jazz Model neck pickup with 7.72 kΩ DC resistance
• Alnico 5 magnets for punchy, articulate response
• Wax potted construction eliminates microphonic squeal
• 4-conductor wiring on both bridge and neck models
• SH-4 resonant peak at 5.5 kHz; SH-2n resonant peak at 8 kHz
• SH-4 EQ: 5/6/8 Bass/Mid/Treble balance
• SH-2n EQ: 5/3/9 Bass/Mid/Treble balance
• Hand-built in Santa Barbara, CA
• Compatible with standard humbucker cavities

This pairing delivers versatility across styles while maintaining the clarity and output that define the Hot Rodded specification—a dependable choice for gigging musicians and studio players alike.
