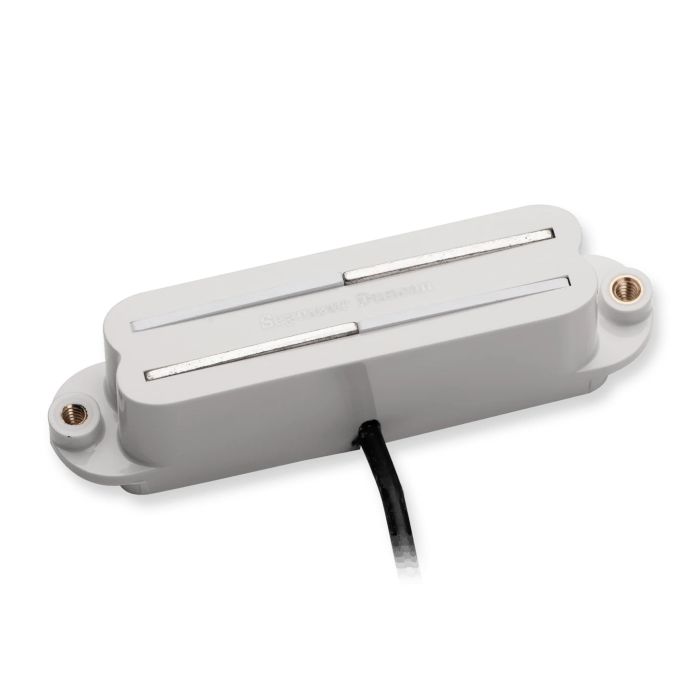

Seymour Duncan SVR-1b Vintage Rails for Strat White Pickup

Seymour Duncan SVR-1b Vintage Rails for Strat White Pickup

The Seymour Duncan SVR-1b delivers authentic single-coil character from a split-rail, twin-coil design that sits flush in your existing Strat bridge pickup route. This hand-built pickup bridges the gap between modern convenience and vintage tone, offering the squealing-free reliability of wax potting without sacrificing the clarity and snap that define great Fender-style lead work on stage.

Tone & Magnetic Character

A ceramic bar magnet paired with a resonant peak at 7.8 kHz produces articulate highs and defined mids, while the EQ curve of 6/3/9 (bass/mid/treble) maintains the open, woody character expected from a vintage-voiced bridge pickup. The 2.67 kΩ DC resistance when wired in parallel ensures responsive attack and natural breakup when pushed through a tube amp, holding up through extended sets without losing definition.

Design & Live Reliability

The 4-conductor lead wire allows you to switch between parallel (vintage) and series wiring via a push/pull pot or mini-toggle, giving you tonal range without rewiring. Hand-built in Santa Barbara, CA and wax potted for squeal-free operation, this pickup installs directly into any single-coil route with zero modification—ready to gig out of the box.

Key Features

• Split-rail, twin-coil design wired in parallel for vintage single-coil tone
• Bridge position pickup
• Ceramic bar magnet
• DC Resistance: 2.67 kΩ (parallel wiring)
• Resonant Peak: 7.8 kHz
• EQ: 6 Bass / 3 Mid / 9 Treble
• Four-conductor lead wire
• Switchable to series wiring via push/pull or mini-toggle
• Wax potted for squeal-free operation
• Hand-built in Santa Barbara, CA
• Drop-in for standard single-coil pickup route
• White cover

The SVR-1b combines Seymour Duncan's craft with practical versatility, delivering the tonal character of a vintage Strat bridge pickup with modern switching capability and noise-free reliability for working musicians.
