Soundcraft CSB Optical MADI HD Card Multi mode
Share
In stock
- SKU
- A949-049032-v
. Description
Soundcraft CSB Optical MADI HD Card Multi Mode
The Soundcraft CSB Optical MADI HD Card keeps your signal chain transparent and noise-free, delivering the digital connectivity that touring and studio professionals rely on for seamless integration into existing Soundcraft rigs. Multi-mode flexibility lets you configure signal routing and format precisely for your setup—whether you're running orchestral tracking, live FOH reinforcement, or complex monitor chains—without introducing technical friction into your workflow. The optical transmission preserves every nuance of your audio with crystal-clear fidelity, giving you confidence that your signal path remains pure and uncolored.
Connectivity & Signal Architecture
Dual redundant cabling with automatic switchover ensures your rig stays online through the entire show or session. The optical implementation eliminates ground loops and RF interference, delivering a transparent signal path across distances up to 1500m in multimode configurations—critical when your console sits far from your stagebox or remote I/O nodes.
Integration & Compatibility
This card slots into Soundcraft's professional mixing ecosystem, supporting both rackmount and stagebox form factors. Compatible platforms include Vi6 Local Rack, Compact Stagebox, Vi1, Vi3000, and Vi Stagebox, making it a versatile addition to established Soundcraft installations.
Key Features

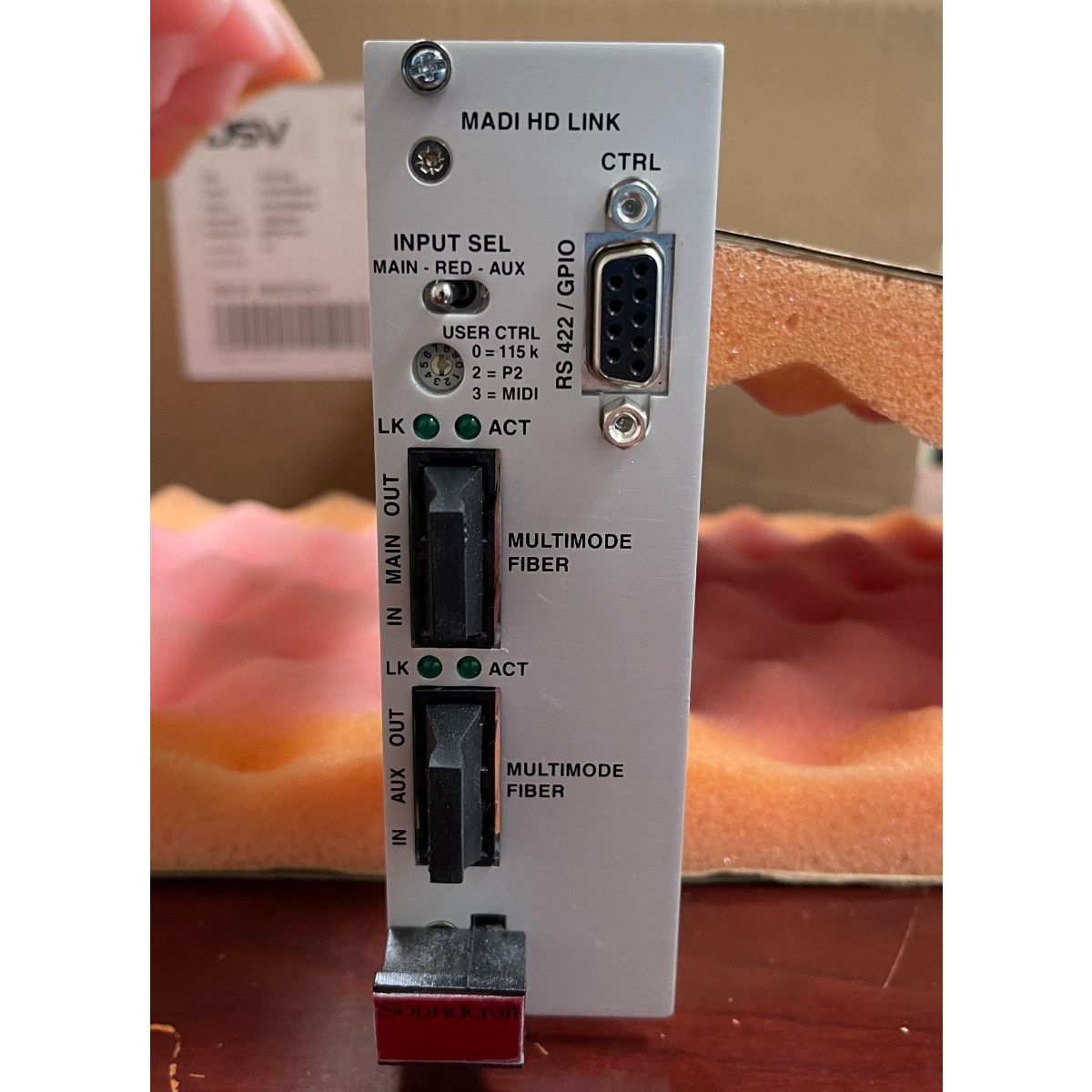

- Industry-standard SC fibre connectors
- Two duplex SC connectors for dual redundant cabling
- Automatic switchover capability
- Maximum connection distance: up to 1500 meters (multimode)
- Operating frequency: 48 kHz
- Multi-mode optical transmission
- Compatible with Vi6 Local Rack
- Compatible with Compact Stagebox
- Compatible with Vi1, Vi3000, and Vi Stagebox
- Available in D21M and Vi Stage Box form factors
- Noise-free optical signal path
- Professional-grade MADI HD architecture
The CSB Optical MADI HD Card removes connectivity bottlenecks from your professional audio workflow, letting you focus entirely on mixing and performance rather than managing technical limitations.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The Soundcraft CSB Optical MADI HD Card is a professional digital audio interface card that integrates into Soundcraft Vi-series mixing consoles and stageboxes, delivering noise-free MADI HD connectivity across distances up to 1500 meters. For live-sound engineers and touring musicians, dual redundant optical cabling with automatic switchover ensures your signal chain stays uninterrupted during critical performances, while the multimode configuration eliminates ground loops and RF interference that plague analog runs. Choose it when you need rock-solid, transparent digital connectivity between front-of-house and stage gear without the headaches of signal degradation or technical downtime.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Studio Sessions
- ✓ Touring
Not the best pick for
- – Home Recording
- – Practice
Skill level: Professional
Frequently Asked Questions
What Soundcraft consoles and stageboxes does this card work with?
The CSB Optical MADI HD Card integrates with Vi6 Local Rack, Compact Stagebox, Vi1, Vi3000, Vi Stagebox, and is available in both D21M and Vi Stage Box form factors for maximum compatibility across Soundcraft's professional mixing ecosystem.
How far can I run the optical cable?
The multimode optical implementation supports connection distances up to 1500 meters, making it suitable for large venues, multi-building installations, or remote stagebox setups without signal degradation.
What makes the optical connection better than standard digital cables?
Optical transmission eliminates ground loops and RF interference, delivering a completely transparent signal path with zero coloration; dual redundant SC fiber connectors with automatic switchover provide failsafe operation in mission-critical live and studio environments.
What sample rate does this card support?
The card operates at 48 kHz and delivers industry-standard MADI HD architecture with two duplex SC connectors for redundant cabling.
Can I use this for both live sound and studio recording?
Yes—multimode flexibility allows you to configure signal routing and format for orchestral tracking, live reinforcement, complex studio chains, or any professional application requiring noise-free digital connectivity.
