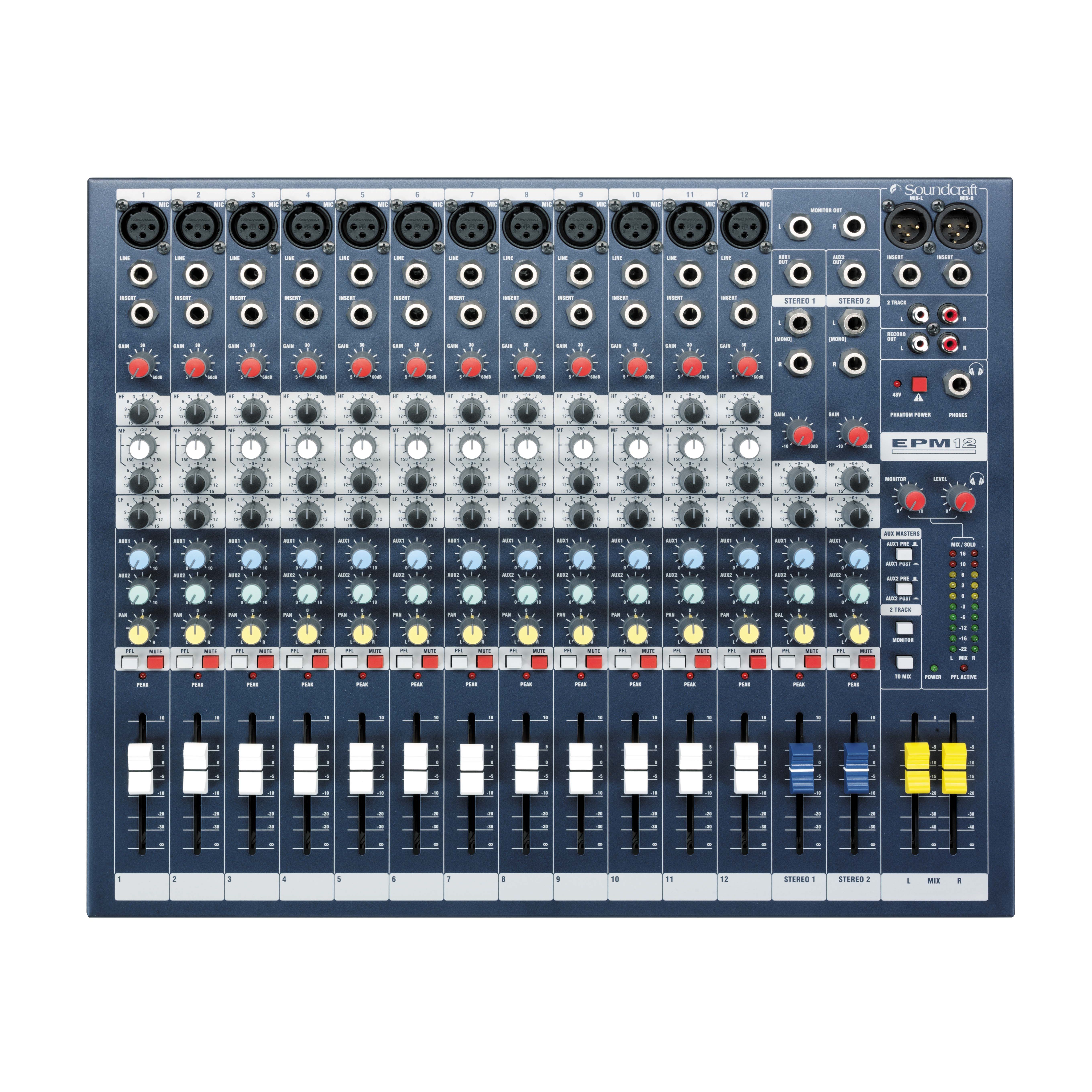

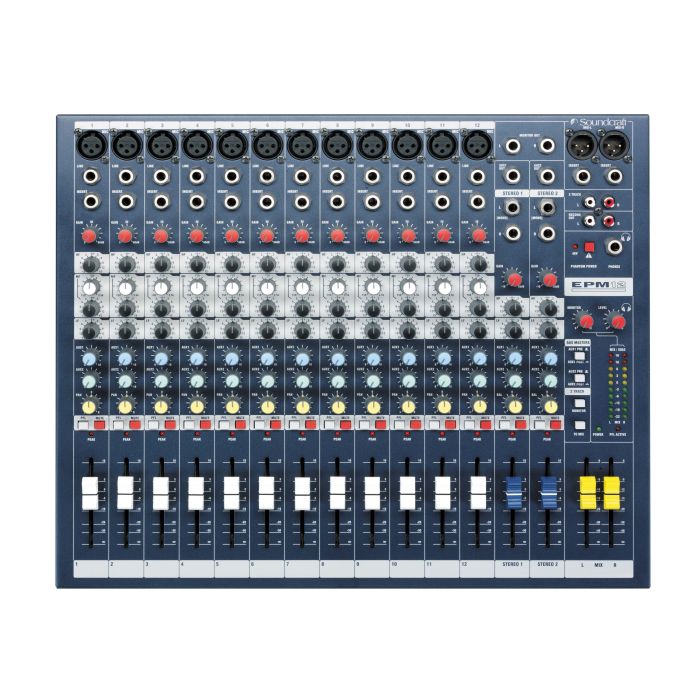

Soundcraft EPM12 High Performance Mixer

Soundcraft EPM12 High Performance Mixer

The Soundcraft EPM12 is a compact yet capable mixing solution that delivers professional-grade sound with intuitive hands-on control. Its responsive 60mm faders and logically arranged I/O make it equally at home in a live sound setup or fixed installation. Built on Soundcraft's reputation for reliability, this mixer handles both small venues and larger deployments without compromise.

Mixing Architecture & I/O

This 14-channel mixer accommodates 12 mono inputs via XLR and 2 stereo inputs via RCA, providing flexible connectivity for microphones, instruments, and line-level sources. The comprehensive output configuration includes 2x XLR main outputs, 1/4" mono main output, 2x 1/4" monitor outputs, 2x RCA stereo outputs, 2x 1/4" auxiliary outputs, and 4x 1/4" auxiliary returns, making it straightforward to integrate with powered speakers, recording interfaces, or external effects processors.

Signal Path & Control

The GB30 mic amplifier provides 55dB gain range with +22dB headroom, ensuring clean amplification of weak microphone signals without distortion. A 3-band parametric EQ with sweepable mids on mono channels grants surgical control over tone, while 48-volt phantom power enables direct connection of modern condenser microphones. The two configurable auxiliary buses allow independent monitor and effects sends, and ten-segment LED metering on main outputs provides accurate level monitoring at a glance.

Key Features

• 14-channel mixer with 12 mono inputs and 2 stereo inputs
• GB30 mic preamp with 55dB gain range and +22dB headroom
• 48-volt phantom power for condenser microphones
• 12x XLR mic inputs with 12x 1/4" line inputs and 4x 1/4" stereo line inputs
• 3-band EQ with sweepable mid on mono inputs
• 60mm high-quality faders for smooth channel control
• Two configurable auxiliary buses for flexible routing
• Ten-segment LED output metering and dedicated 1/4" headphone output
• Multiple main outputs: 2x XLR, 1x 1/4" mono, 2x RCA stereo
• 2x 1/4" aux outputs and 4x 1/4" auxiliary returns
• 2x 1/4" monitor outputs for wedge monitoring
• Rack-mountable design with compact 3.6 x 17 x 14.25" footprint

The EPM12 combines straightforward signal routing, robust preamps, and dependable metering into a professional mixer that delivers transparent audio across venues and applications.
