Soundcraft Mini Stagebox MSB-16R - 5049657
Description

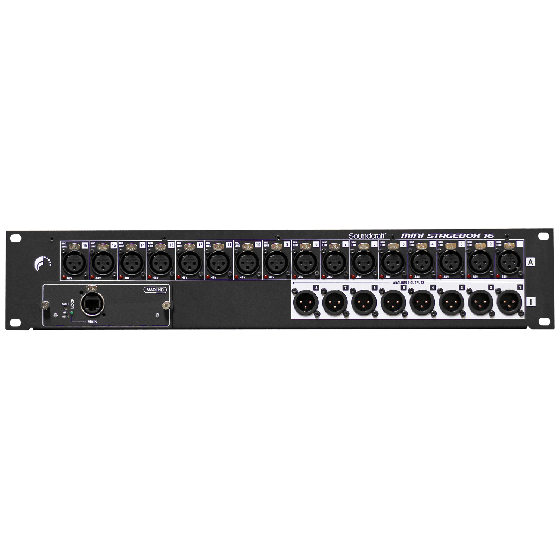

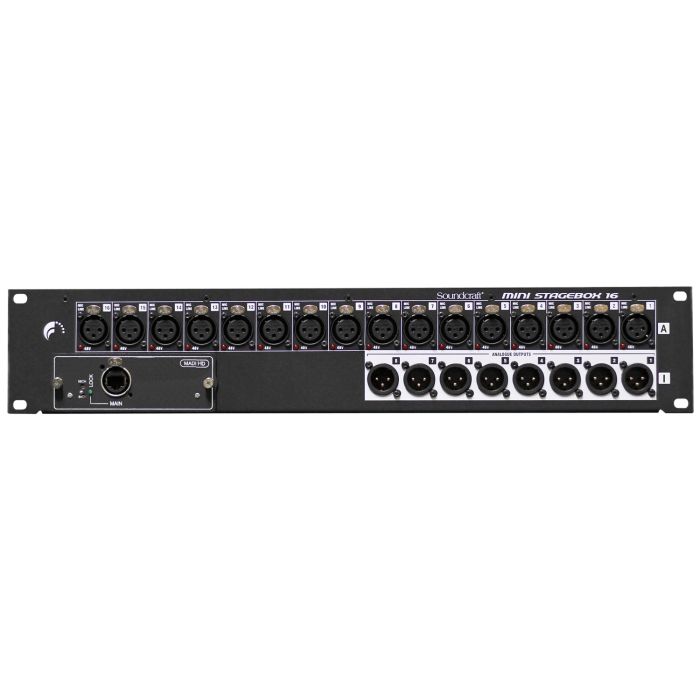

Soundcraft Mini Stagebox MSB-16R
The MSB-16R is a compact 2U stagebox built for rock-solid stage reliability and straightforward connectivity. This self-contained unit sits comfortably stage-side and connects to Soundcraft consoles via a single Cat-5 MADI cable, giving your live rig the no-fuss approach you need when you're focused on the performance, not the infrastructure.
Connectivity & Architecture
The 16 x 8 matrix configuration delivers 16 analogue mic/line inputs and 8 analogue line outputs, all integrated with a single-cable Cat-5 MADI HD interface for seamless connection to compatible Soundcraft consoles. The integral power supply means the stagebox operates completely self-contained—no external PSU required, so one less thing to worry about when you're setting up for a gig.
Audio Performance
24-bit converters at 48 kHz sample rate ensure clean digital conversion across all channels, while the 1.5 ms low latency keeps your cue mixes and monitoring locked tight during live sets. Operating range from -10°C to +50°C means this box stays dependable across club dates, festival rigs, and outdoor venues—whatever the environment throws at you.
Key Features
- 2U rack-mounted chassis
- 16 analogue mic/line inputs
- 8 analogue line outputs
- Single-cable Cat-5 MADI HD interface
- Integral self-contained power supply
- Compatible with Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via MADI card
- 24-bit digital converters
- 48 kHz sample rate
- 1.5 ms low latency
- Operating temperature range -10°C to +50°C
The MSB-16R delivers bulletproof stagebox functionality with minimal complexity, making it a trusted workhorse for touring musicians and venues that rely on Soundcraft's proven console ecosystem night after night.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The Soundcraft Mini Stagebox MSB-16R is a compact 2U stagebox that gives you 16 mic/line inputs and 8 line outputs via a single Cat-5 MADI connection to your Soundcraft console. Built for touring and mid-scale venues, it keeps setup simple with no external power supply needed and reliable 24-bit conversion at 1.5 ms latency, so your band's mix stays tight and dependable night after night.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Mid-scale venues
Not the best pick for
- – Home Recording
- – Studio Sessions
Frequently Asked Questions
What consoles is the MSB-16R compatible with?
The MSB-16R works with Soundcraft Si Expression, Si Compact, Si Performer, Si Series, and Vi Series consoles via an optional MADI card. It connects via a single Cat-5 MADI HD cable.
How many inputs and outputs does it have?
The MSB-16R provides 16 analogue mic/line inputs and 8 analogue line outputs in a 16 x 8 matrix configuration, all fed through one MADI connection.
Does it need an external power supply?
No. The MSB-16R has an integral self-contained power supply, so it operates without external PSU requirements.
What latency and sample rate does it deliver?
The MSB-16R operates at 48 kHz sample rate with 24-bit converters and 1.5 ms low latency, keeping your live mix timing tight.
Can it handle outdoor or touring conditions?
Yes. The MSB-16R is rated to operate reliably between -10°C and +50°C, covering typical venue and outdoor conditions on the road.
