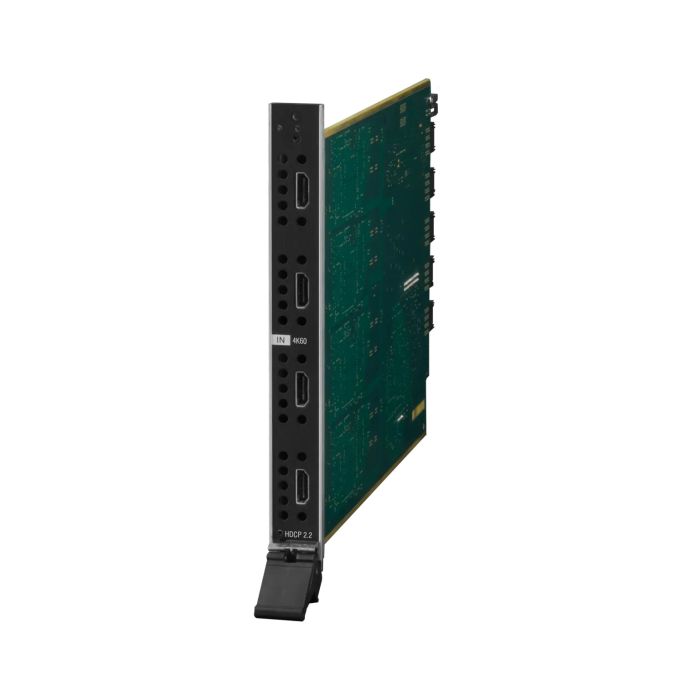

AMX DGX-I-HDMI-4K60 Enova DGX 4K60 4:4:4 HDMI Input Board
Description
AMX DGX-I-HDMI-4K60 Enova DGX 4K60 4:4:4 HDMI Input Board
This HDMI input board is the reliable foundation for Enova DGX presentation systems handling the demanding signal requirements of modern 4K workflows in live venues and touring installations. Built for professional AV setups where signal integrity and compatibility are non-negotiable, the DGX-I-HDMI-4K60 processes premium video and audio feeds with full chroma integrity across supported resolutions—no compromises in the field.
Video & Signal Processing
The board supports 3840×2160p and 4096×2160p resolutions at up to 60 Hz with full 4:4:4 chroma subsampling, ensuring pixel-perfect image reproduction without compression artifacts. With an 18 Gbps maximum data rate and 600 MHz pixel clock support, this board handles HDR content and advanced 3D formats including frame packing, top-bottom, and side-by-side configurations—essential for touring productions and permanent venue installations alike.
Connectivity & Audio Capability
Four input connections accept HDMI, DisplayPort++, or DVI signals with embedded audio, and support cable runs up to 21 feet (7 meters) without signal degradation—a practical advantage when routing from booth to stage or across venue spaces. Audio processing includes Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS-HD, DTS, and multi-channel L-PCM (2–8 channels), delivering the surround-sound capability needed for immersive live events and installed systems.
Key Features
- Maximum resolution support: 3840×2160p@24/25/30/60 Hz @ 4:4:4
- 4096×2160p@24/25/30/60 Hz @ 4:4:4 DCI 4K compatibility
- 18 Gbps maximum video data rate with 600 MHz pixel clock
- Full HDR support with no chroma subsampling or compression
- 3D format support: frame packing, top-bottom, and side-by-side
- Four input connections: HDMI, DisplayPort++, and DVI with embedded audio
- Cable run support up to 21 feet (7 meters)
- HDCP 2.2 compliant for protected content
- Dolby Atmos and Dolby TrueHD audio decoding
- DTS-HD and multi-channel L-PCM (2–8 channels) support
- Compatible with Enova DGX 800, 1600, 3200, and 6400 systems
This board delivers the robust, dependable performance required in live sound environments and high-end installations where signal integrity and format flexibility keep shows running reliably night after night.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX DGX-I-HDMI-4K60 is a professional HDMI input board for Enova DGX presentation systems that handles uncompressed 4K video at full chroma fidelity and supports advanced audio formats including Dolby Atmos and DTS-HD. Built for corporate AV installations, live event production, and broadcast facilities, it processes premium signals with zero compression artifacts and reliable cable runs up to 21 feet. Choose it when pixel-perfect 4K image quality, HDR support, and enterprise-grade signal integrity are non-negotiable in a high-end installation.
Who This Is For
Great for
- ✓ Corporate AV installations
- ✓ Live event production
- ✓ Broadcast and streaming facilities
- ✓ High-end presentation systems
Not the best pick for
- – Home theater consumer use
- – Portable or mobile installations
Skill level: Professional
Frequently Asked Questions
What resolutions and frame rates does this board support?
The board supports 3840×2160p and 4096×2160p (DCI 4K) resolutions at 24, 25, 30, and 60 Hz with full 4:4:4 chroma subsampling, delivering pixel-perfect image reproduction without compression artifacts. It also supports HDR content and advanced 3D formats including frame packing, top-bottom, and side-by-side configurations.
What audio formats and surround-sound options does it decode?
The board decodes Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS-HD, DTS, and multi-channel L-PCM (2–8 channels), making it suitable for immersive and surround-sound installations in broadcast, live event, and presentation environments.
How many input connections does it have, and how far can I run cables?
The board provides four input connections that accept HDMI, DisplayPort++, or DVI signals with embedded audio, and supports cable runs up to 21 feet (7 meters) without signal degradation.
Which Enova DGX systems is this board compatible with?
The DGX-I-HDMI-4K60 is compatible with Enova DGX 800, 1600, 3200, and 6400 systems and integrates seamlessly into professional AV installations where fidelity and compatibility are required.
What data rate and pixel clock does this board support?
The board handles an 18 Gbps maximum video data rate with 600 MHz pixel clock support, ensuring reliable processing of HDR content and advanced video formats without bottlenecks.
