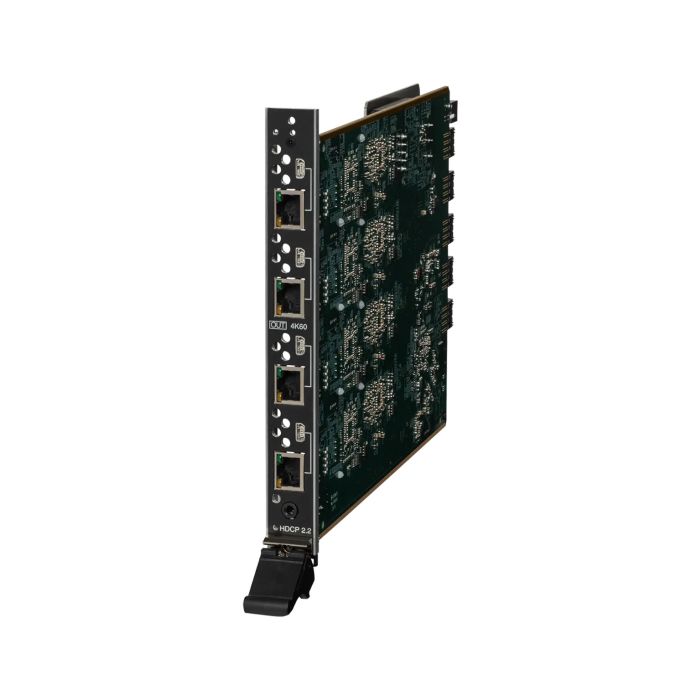

AMX DGX-O-DXL-4K60 Enova DGX DXLink 4K60 Twisted Pair Output Board
Share
- Brand new in original box
- Full AMX manufacturer's warranty
- Free shipping in the continental US
In stock
- SKU
- FG1061-582
Description
AMX DGX-O-DXL-4K60 Enova DGX DXLink 4K60 Twisted Pair Output Board
This output board integrates seamlessly into Enova DGX enclosures, delivering professional-grade 4K video distribution over standard twisted pair cabling for reliable, long-distance signal transmission across venues and installations. The hot-swappable design allows for quick installation and field replacement without system downtime, keeping your AV infrastructure operational when you need it most.
Video & Signal Distribution
The board transmits 4K60 4:4:4 video with full HDR support and HDCP 2.2 compliance across four independent connections, each capable of reaching 328 feet (100 m) over Cat6A/Cat7 or 262 feet (80 m) over Cat6 twisted pair. Simultaneous transmission of bi-directional control, USB 2.0, and Ethernet signals over the same cable eliminates the need for multiple line runs and simplifies your cable plant in large venues and multi-room setups.
Integration & Power Management
Purpose-built for Enova DGX 800, 1600, 3200, and 6400 enclosures, this output board provides DXLink Power directly to connected twisted pair receivers, enabling single-cable solutions throughout distributed AV installations. The HDBaseT standard compliance ensures compatibility with a broad ecosystem of professional AV components, keeping your system flexible as venues and facilities evolve.
Key Features
- 4K60 4:4:4 video resolution with 36-bit deep color per pixel
- HDMI 2.0 input with HDCP 2.2 protection
- Support for 4K60 4:2:2, 4K50/60 4:2:0, and 4096x2160p resolutions
- Full HDR support for enhanced color and contrast
- Four twisted pair outputs per board
- Extended range: 328 ft over Cat6A/Cat7, 262 ft over Cat6
- Bi-directional control and USB 2.0 signaling over twisted pair
- Ethernet transport via single cable
- DXLink Power feed to remote receivers
- Hot-swappable module design
- HDBaseT standard compliant
- Compatible with all Enova DGX frame sizes
This output board delivers the distributed AV capability and long-distance performance required for touring rigs, live event venues, broadcast facilities, and installed systems where reliable signal integrity and operational uptime are non-negotiable.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX DGX-O-DXL-4K60 is a professional 4K60 output board for Enova DGX matrices that distributes video, control, USB, and Ethernet over standard twisted pair cabling up to 328 feet without signal degradation. Built for control rooms, broadcast facilities, and enterprise installations that require rock-solid long-distance AV distribution with zero downtime swaps, this hot-swappable module handles full HDR, HDCP 2.2 compliance, and simultaneous bi-directional control over a single cable run. Choose it when your install demands broadcast-grade signal integrity, multi-format flexibility, and the ability to expand or repair on the fly without bringing down the system.
Who This Is For
Great for
- ✓ installed AV systems
- ✓ control room environments
- ✓ broadcast facilities
- ✓ enterprise distribution
- ✓ large-scale installations
Not the best pick for
- – consumer home theater
- – portable live sound
- – small venues
Skill level: Professional
Frequently Asked Questions
What enclosures is this output board compatible with?
The DGX-O-DXL-4K60 is purpose-built for Enova DGX 800, 1600, 3200, and 6400 enclosures and uses a hot-swappable module design for quick field installation and replacement.
How far can I run 4K60 video over twisted pair with this board?
The board transmits 4K60 4:4:4 video up to 328 feet over Cat6A/Cat7 cabling or 262 feet over Cat6, with full HDR and HDCP 2.2 support maintained across the entire distance.
What signals can I send over a single twisted pair cable?
Each twisted pair output carries 4K60 video plus bi-directional control signaling, USB 2.0, and Ethernet transport simultaneously, along with DXLink Power to remote receivers—eliminating the need for multiple line runs.
What video formats does this board support?
The board handles 4K60 4:4:4 with 36-bit deep color, 4K60 4:2:2, 4K50/60 4:2:0, and 4096x2160p resolutions, with full HDR support and HDCP 2.2 compliance across all formats.
Is this board compatible with non-AMX AV components?
Yes, the board meets the HDBaseT standard, ensuring compatibility with a broad ecosystem of professional AV components from multiple manufacturers.
