What exactly does the dbx 641 do?

The dbx 641 is a digital zone processor that routes and manages audio signals across multiple zones in installed sound systems, venues, or broadcast facilities. It takes 6 inputs and distributes them to 4 outputs with transparent processing, allowing you to send different mixes to different speaker zones or monitoring points without audible coloration.

Is this suitable for a small live venue or installed PA system?

Yes. The dbx 641 is engineered specifically for small venue reinforcement and installed sound systems. Its compact 1U rackmount design, professional balanced inputs, studio-grade fidelity, and tight 0.6ms propagation delay make it reliable for consistent, transparent zone distribution night after night.

What inputs and outputs does it have?

The unit provides 6 inputs via two balanced Euroblock connectors (mic/line switchable) plus four stereo RCA connectors for consumer equipment. It outputs 4 channels via balanced Euroblock connectors, with maximum input levels of +20dBu (mic/line) and +12dBu (RCA), and maximum output level of +20dBu.

How transparent is the audio processing?

Very transparent. The dbx 641 delivers 0.003% typical THD, >80dB interchannel crosstalk, and 119dB A-weighted dynamic range via Type IV conversion technology—ensuring minimal coloration and studio-grade fidelity suitable for professional broadcast and venue use.

Can I chain multiple dbx 641 units together?

Yes. The unit includes an analog input bus for unit-to-unit scalability, allowing you to expand routing capacity by connecting multiple processors when your system grows.

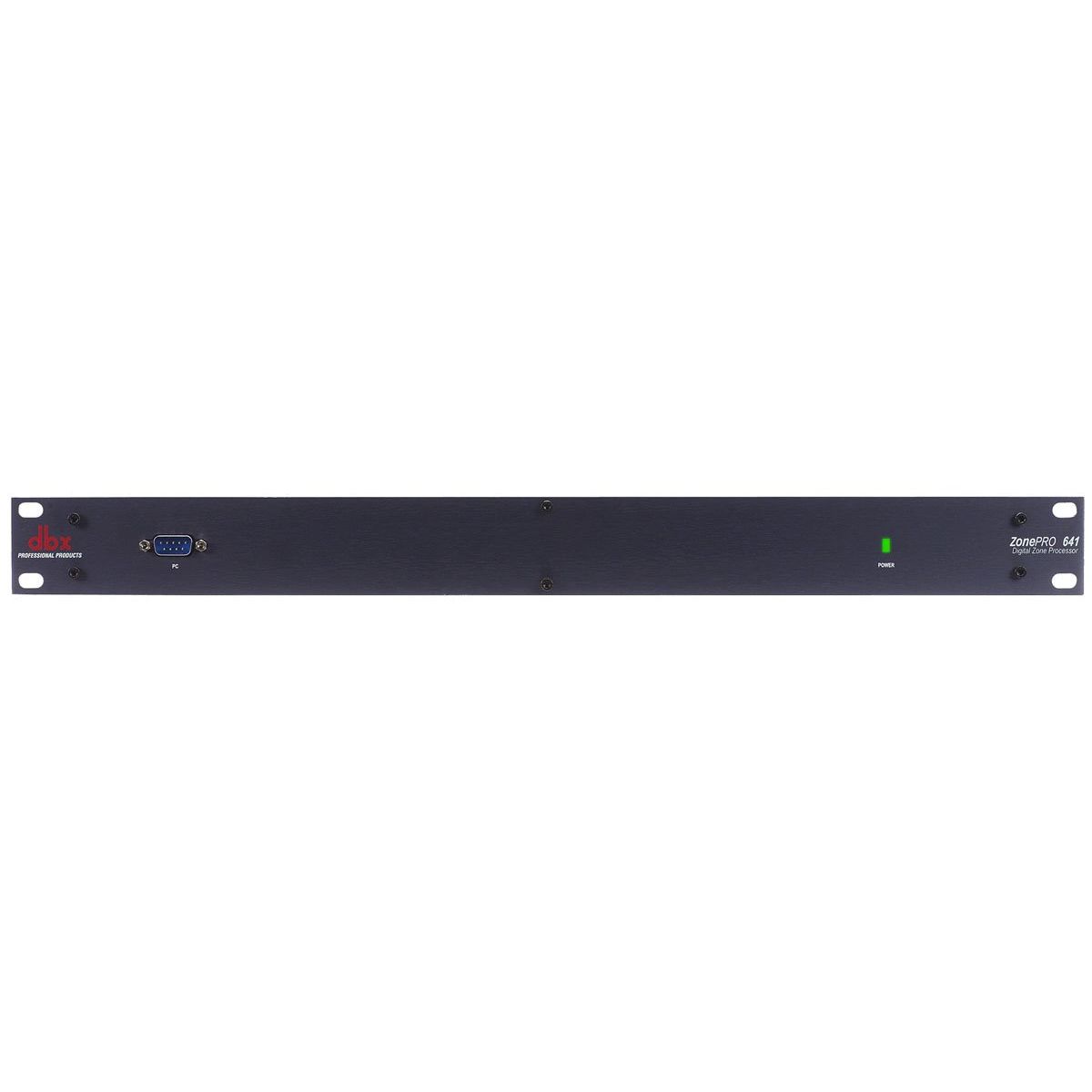

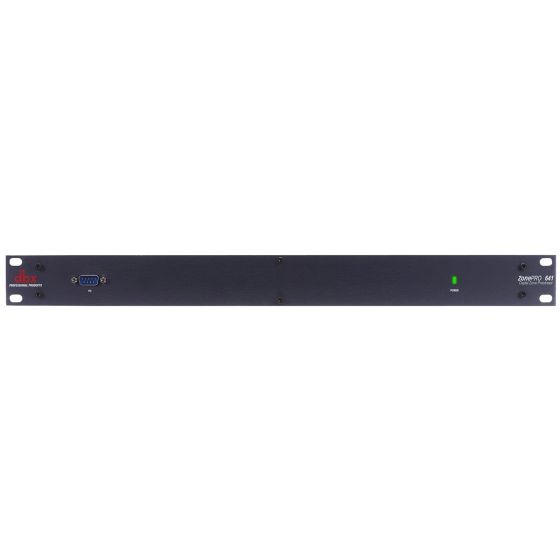

dbx 641 6x4 Digital Zone Processor

The dbx 641 is a compact rackmount digital zone processor built for live sound engineers and venue operators who need dependable audio routing and management across multiple zones. Its straightforward interface and robust Type IV conversion technology deliver transparent signal processing without audible degradation—essential when you're running monitors, main PA feeds, or distributed audio in installed systems. This unit handles the core routing intelligence that touring rigs and permanent installations demand, packed into a single rack space.

Design & Build

The 19-inch rackmountable chassis measures just 1.75 inches tall, making efficient use of rack real estate in tight touring cases and venue racks. Connectivity combines professional balanced Euroblock connectors for microphone or line signals alongside four stereo RCA connectors for consumer equipment integration, with an analog input bus for unit-to-unit scalability when you need to chain multiple processors for expanding monitor or zone control.

Audio Performance & Specifications

This processor delivers the clean, transparent audio fidelity live sound demands: frequency response of 20Hz to 20kHz, 0.003% typical THD, and interchannel crosstalk exceeding 80dB ensure your signal stays pristine across the entire signal chain. Dynamic range reaches over 113dB A-weighted for line-level signals, with Type IV dynamic range extending to 119dB A-weighted for extended headroom on hot signals. Low 0.6 millisecond propagation delay keeps timing tight and phase-coherent across distributed zones.

Key Features

6 inputs and 4 outputs for flexible zone routing
Two balanced Euroblock connectors with mic/line switchable inputs
Four stereo RCA connectors for consumer equipment interfacing
Maximum input level +20dBu (mic/line) and +12dBu (RCA)
Maximum output level +20dBu
dbx Type IV conversion technology
Frequency response 20Hz to 20kHz
0.003% typical THD with >80dB interchannel crosstalk
Dynamic range >113dB A-weighted (line-level); Type IV dynamic range >119dB A-weighted
0.6 millisecond propagation delay
100–230 VAC operation at 29 watts power consumption
Analog input bus for unit-to-unit scalability

The dbx 641 combines practical I/O flexibility with measured audio performance, making it a road-ready and install-friendly choice for any gig or venue requiring transparent zone-based signal distribution.

Condition	New
Country of Manufacture	China
