JBL AM5215/64 Two-way full range loudspeaker B-Stock
In stock
- SKU
- AM5215-64-B
Description

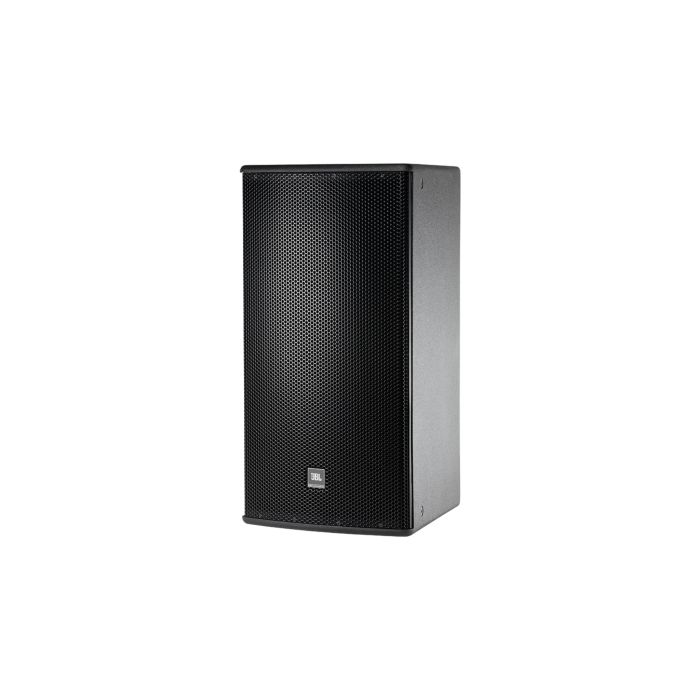

JBL AM5215/64 Two-way Full Range Loudspeaker
The AM5215/64 is a compact yet capable full-range system that balances power and portability for mid-sized venues, installations, and mobile applications. Its lightweight 55 lb construction and rotatable waveguide make it approachable for single-operator deployment without sacrificing acoustic performance or build quality. This is a genuine workhorse designed for consistent, reliable operation across live sound, corporate events, and installed sound environments.
Acoustic Design & Coverage
The dual-driver configuration pairs a 380 mm (15 in) differential drive low-frequency transducer with a 38 mm (1.5 in) compression driver for coherent full-range coverage across a 60° x 40° pattern. The high-slope passive crossover network minimizes band overlap and ensures smooth integration between drivers, while the rotatable waveguide allows vertical or horizontal orientation to match room geometry and throw requirements.
Construction & Connectivity
Heavy bracing and multiply birch enclosure with DuraFlex finish provide durability against transport and venue wear, while the 14-gauge steel grille with acoustically transparent foam lining protects drivers without coloring the sound. Connections include both NL4 Neutrik speakON and barrier strip terminals accepting up to 10 AWG wire, with 15 M10 threaded attachment points for flying or permanent rigging; the system supports bi-amped or passive operation via selectable switch.
Key Features
- 2-way, full-range loudspeaker system with medium power capacity
- JBL 265H-1 differential drive low-frequency driver, 380 mm (15 in) with dual voice coil and dual magnetic gap
- JBL 2408H-1 compression driver, 38 mm (1.5 in) exit and voice coil
- 60° x 40° coverage pattern
- Rotatable waveguide for vertical or horizontal orientation
- Multiply birch enclosure with DuraFlex finish, heavily braced
- 15 M10 threaded attachment points for flying and rigging
- 14-gauge steel grille with acoustically transparent foam lining
- NL4 Neutrik speakON and barrier strip terminal connectivity (10 AWG capable)
- High-slope passive network for minimal band overlap
- Selectable bi-amped or passive operation
- Net weight: 55 lbs (25 kg); Dimensions: 30.8" H × 16.6" W × 19.85" D
The AM5215/64 delivers professional audio reproduction in a format light enough to move easily yet rugged enough to endure repeated deployment across touring and permanent installation contexts.
More Information
| Condition | Refurbished |
|---|
Reviews
At a Glance
The JBL AM5215/64 is a compact yet powerful two-way full-range loudspeaker built for live sound, touring, and installed applications, balancing 55 lb portability with professional acoustic performance. Its 15-inch woofer and 1.5-inch compression driver deliver coherent full-range coverage across a 60° x 40° pattern, while the rotatable waveguide and heavy birch enclosure adapt to any venue layout and withstand road wear. Choose it when you need a workhorse that one person can move and set up reliably night after night without compromising sound quality or durability.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Corporate Events
- ✓ Touring
- ✓ Installed Sound
Not the best pick for
- – Home Recording
- – Practice
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What does B-Stock mean?
B-Stock means the unit is fully functional with minor cosmetic imperfections. This AM5215/64 performs identically to new retail stock and carries the same acoustic specifications and build quality.
Is this speaker suitable for touring and mobile live sound?
Yes. At 55 lbs with a carry-friendly form factor, rotatable waveguide, and heavy bracing for transport durability, it's built for repeated setup and breakdown across multiple venues. It includes 15 M10 threaded rigging points for secure flying or ground stacking.
What coverage pattern does it deliver?
The AM5215/64 covers 60° horizontal by 40° vertical, suitable for mid-sized rooms and venues. The rotatable waveguide lets you orient it vertically or horizontally to match your throw distance and room geometry.
Can it run passive or bi-amped?
Yes. A selectable switch lets you run it passively from a single amplifier connection or bi-amped with separate amps for the woofer and compression driver, depending on your system architecture and coverage needs.
What connections does it have?
It includes both NL4 Neutrik speakON connectors and barrier strip terminals that accept up to 10 AWG wire, giving you flexibility to match your existing rig's wiring standard.
