JBL AM7315/95 3-WAY Full-range Loaudspeaker System B-Stock
In stock
- SKU
- AM7315-95-B
Description

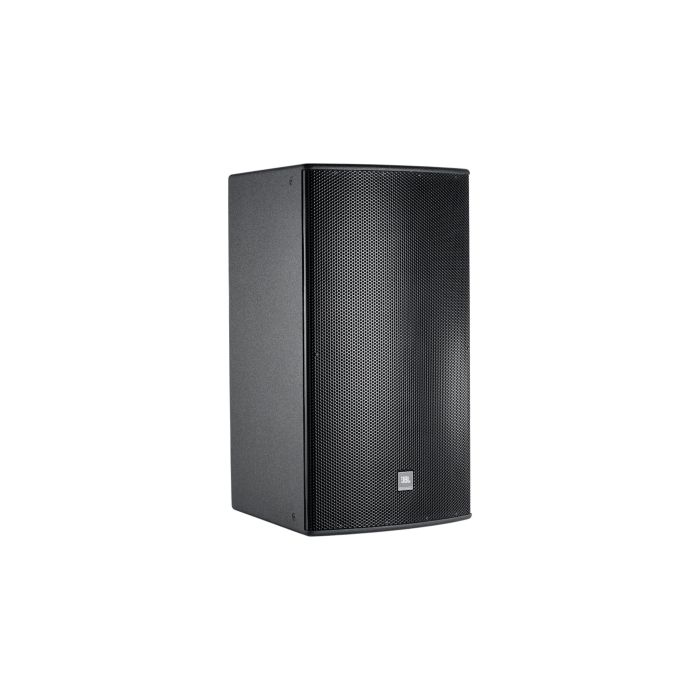

JBL AM7315/95 3-Way Full-Range Loudspeaker System
The AM7315/95 is a professional-grade three-way speaker system engineered for consistent, controlled coverage across mid-to-large venues. Built with heavy-duty Finnish birch plywood and DuraFlex finish, this cabinet delivers reliable performance in both indoor and outdoor installations with minimal maintenance. Its rotatable design and comprehensive mounting options make it equally at home as a main system, fill speaker, or permanent installation fixture.
Acoustic Performance & Coverage
This system produces a maximum SPL of 141 dB in tri-amp mode with 108 dB sensitivity in bi-amp mode, making it capable of pressurizing large spaces without distortion. The 90° × 50° coverage pattern ensures even sound distribution across wide horizontal throw with controlled vertical dispersion, ideal for venues where off-axis clarity matters.
Driver Configuration & Construction
The three-way design pairs a 380 mm (15-inch) Differential Drive woofer for punchy low-end with a 200 mm (8-inch) CMCD cone midrange driver and 38 mm compression tweeter, yielding a 38 Hz to 20 kHz frequency range. Cabinet construction uses 16 mm exterior-grade 11-ply Finnish birch plywood with DuraFlex finish for durability in demanding environments.
Key Features
- Three-way system with 15-inch woofer, 8-inch midrange, and 1.5-inch tweeter
- Frequency response: 38 Hz to 20 kHz (-10 dB)
- Maximum SPL: 141 dB (tri-amp mode)
- System sensitivity: 108 dB SPL (bi-amp mode)
- Power rating: 600W
- Coverage pattern: 90° × 50°
- Dimensions: 967 × 561 × 657 mm (38.1 × 22.1 × 25.9 inches)
- 13 M10 threaded suspension points for flexible rigging
- Rotatable for horizontal or vertical orientation
- 16 mm 11-ply Finnish birch plywood cabinet with DuraFlex finish
- IP-x3 environmental rating per IEC529
- Suitable for permanent installation or portable deployment
The AM7315/95 combines raw output capability with predictable coverage patterns and rugged construction—a workhorse system that performs reliably in fixed installations and touring environments alike.
More Information
| Condition | Refurbished |
|---|
Reviews
At a Glance
The JBL AM7315/95 is a professional three-way PA speaker delivering 141 dB SPL with a punchy 15-inch woofer, controlled 8-inch midrange, and crisp compression tweeter for consistent sound across mid-to-large venues. Built from 11-ply Finnish birch plywood with a durable finish, it handles both touring and permanent installation with minimal maintenance and rotatable rigging for flexible deployment. Choose this if you need a road-tested workhorse that maintains clarity and low-end punch at high volume without distortion across wide listening areas.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Venue Installation
- ✓ Festival PA
Not the best pick for
- – Home Recording
- – Intimate Venues
- – Practice Spaces
Skill level: Professional
Frequently Asked Questions
What does B-Stock mean?
B-Stock means this unit is fully functional and meets all performance specifications but may have minor cosmetic imperfections from handling or display. All acoustic and electrical performance is identical to new units.
What size venues is this speaker designed for?
The AM7315/95 is engineered for mid-to-large venues and festival PA systems where a 141 dB SPL and 90° × 50° coverage pattern can pressurize substantial spaces. It works as a main system, fill speaker, or permanent installation fixture in auditoriums, outdoor events, and touring applications.
Can this speaker be oriented vertically or horizontally?
Yes, the cabinet is rotatable and can be deployed in horizontal or vertical orientation. It includes 13 M10 threaded suspension points for flexible rigging in either configuration.
What is the frequency response and maximum SPL?
The system reproduces 38 Hz to 20 kHz at -10 dB with a maximum SPL of 141 dB in tri-amp mode. Bi-amp sensitivity is rated at 108 dB SPL, and it handles 600W of power.
Is this speaker suitable for outdoor or temporary use?
Yes. The 16 mm 11-ply Finnish birch cabinet with DuraFlex finish is built for durability in demanding environments and carries an IP-x3 environmental rating. It is equally suited for permanent installation or portable touring deployment with minimal maintenance.
