What does B-Stock mean for this speaker?

B-Stock indicates the unit is fully functional and meets all performance specifications, but may have minor cosmetic imperfections from display or handling. The speaker's audio quality and reliability are uncompromised.

What size wall cavity do I need to install this speaker?

The Control 126W requires a wall cavity between 20 and 40 liters (0.7 to 1.4 cubic feet) for optimal bass loading. The wall cutout dimensions are 246 × 181 mm (9.7 × 7.2 inches), fitting standard in-wall framing.

How much power does this speaker need, and what amplifier should I use?

The speaker is rated for 50 W continuous, 100 W program, and 200 W peak power at 8 ohms impedance. It works with modest amplifiers and integrates easily into both small and mid-sized systems without special equipment.

Can the tweeter be aimed, and what is the coverage pattern?

Yes, the 1-inch titanium dome tweeter is swivel-mounted and aimable, allowing you to direct high frequencies toward listening areas. The speaker delivers 180° horizontal by 160° vertical coverage, ensuring consistent sound across wider seating areas.

What frequencies does this speaker reproduce, and how does it compare to other in-wall models?

The Control 126W covers 38 Hz to 20 kHz with a smooth midrange, extended low end, and articulate highs. It compares closely to models like the Audix AP61 and Crown SI-2, offering professional crossover design in a compact, retrofit-friendly format.

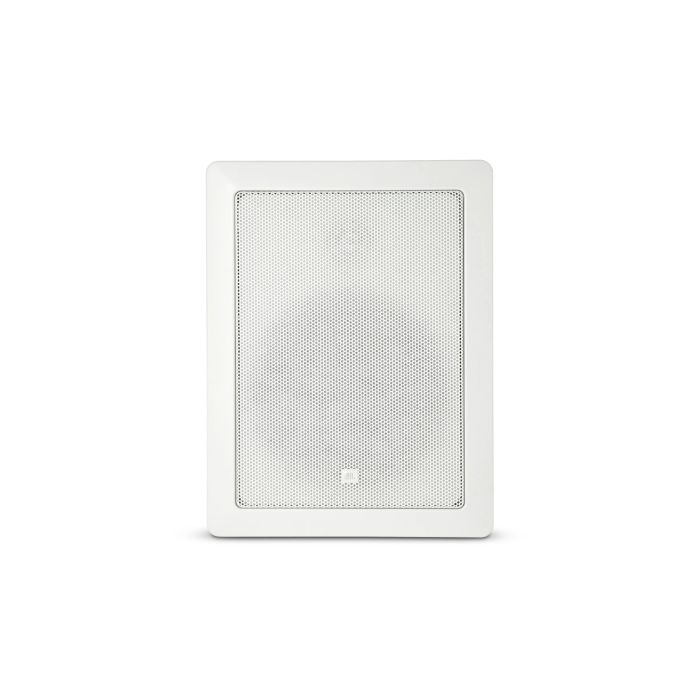

JBL Control 126W 6.5" In-Wall Speaker

The Control 126W delivers professional-grade performance in a discreet in-wall format, designed for installations where acoustic fidelity matters but visual footprint must remain minimal. Its compact profile and aimable tweeter make it equally suited to residential listening rooms, commercial spaces, and retrofit applications where traditional speaker placement isn't practical.

Acoustic Design & Coverage

This two-way system combines a 6.5-inch polymer-coated aluminum-cone woofer with a 1-inch pure-titanium dome tweeter, engineered for smooth, extended response from 38 Hz to 20 kHz. The high-slope 3rd-order crossover (18 dB/octave on both drivers) ensures natural midrange integration and 180° horizontal by 160° vertical coverage, allowing consistent sound across wider listening areas than typical fixed-angle designs.

Power Handling & Installation Specifications

Rated for 50 W continuous, 100 W program, and 200 W peak power at 8 ohms impedance, the Control 126W accommodates both modest amplifiers and higher-output sources without difficulty. Wall cutout dimensions of 246 x 181 mm (9.7 x 7.2 inches) fit standard in-wall cavities, and the recommended 20 to 40-liter air cavity ensures proper bass loading for the woofer's extended low-frequency performance.

Key Features

165 mm (6.5 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround
25 mm (1 in) pure-titanium dome low-diffraction swivel aimable tweeter
Frequency response: 38 Hz – 20 kHz
Sensitivity: 88 dB SPL
Coverage pattern: 180°H x 160°V (average 1 kHz – 8 kHz)
Power handling: 50 W continuous / 100 W program / 200 W peak
Impedance: 8 ohms
3rd-order (18 dB/octave) high-slope crossover design
Dimensions: 11" H x 8.5" W x 4.1" D (3.8" front-to-back)
Optimum air cavity: 20 to 40 liters (0.7 to 1.4 cubic feet)
Screw-down Euroblock connectors with 14 AWG maximum wire size
Wall cutout: 246 x 181 mm (9.7 x 7.2 inches)

The Control 126W combines professional crossover engineering with practical installation features, making it a dependable choice for systems requiring balanced tone and flexible mounting in confined spaces.
