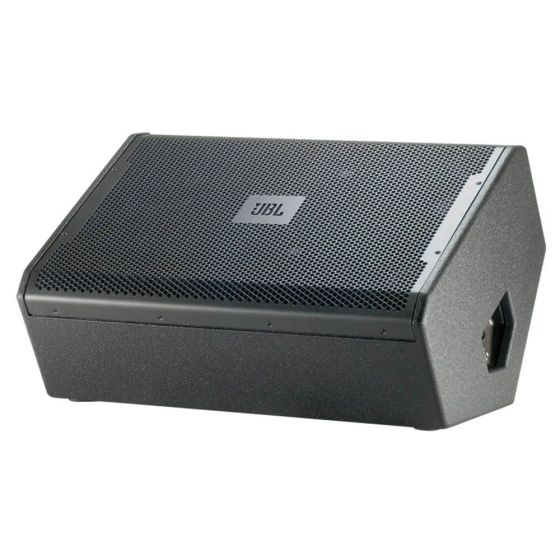

Compact and low-profile for minimal obstruction of audience sightlines
50 x 90 nominal coverage
Bi-amplified or full-range passive operation
Differential Drive® woofer with neodymium magnet for high power capacity and very light weight
4" (voice coil) diameter compression driver with neodymium magnet
Power Rating
:
800 W / 1600 W / 3200W
Frequency Range
:
60 Hz - 20 kHz
Dimensions (H x W x D)
:
629 mm x 432 mm x 324 mm (375 mm stage height) 24.75 in x 17 in x 12.75 in (14.75" stage height)
Frequency Response
:
70 Hz - 20 kHz
Coverage Pattern
:
50 x 90 nominal
Crossover Modes
:
Passive / Bi-amp
Crossover Frequency
:
1.1 kHz
System Maximum SPL
:
127 dB SPL continuous (133 dB SPL peak)
System Sensitivity (1w @ 1m
:
98 dB SPL
LF Driver
:
1 x JBL 2265H 380 mm (15 in) Differential Drive® woofer 8 Ohms
HF Driver
:
1 x JBL 2452H,100 mm (4.0 inch) diameter voice coil,38 mm (1.5 inch) exit,neodymium magnet compression driver 8 Ohms
Nominal Impedance
:
8 ohms
Active Tunings
:
Tunings available at www.jblpro.com
Enclosure
:
Symmetrical stage monitor,15/18 mm,plywood
Finish
:
Black DuraFlex™ finish
Grille
:
Powder coated,black,16 gauge perforated steel with acoustically transparent black screen backing
Input Connectors
:
Neutrik® Speakon® NL-4 (x2),one on each end
Net Weight
:
21 kg (46.0 lb)
More Information
Condition
New
Country of Manufacture
China
