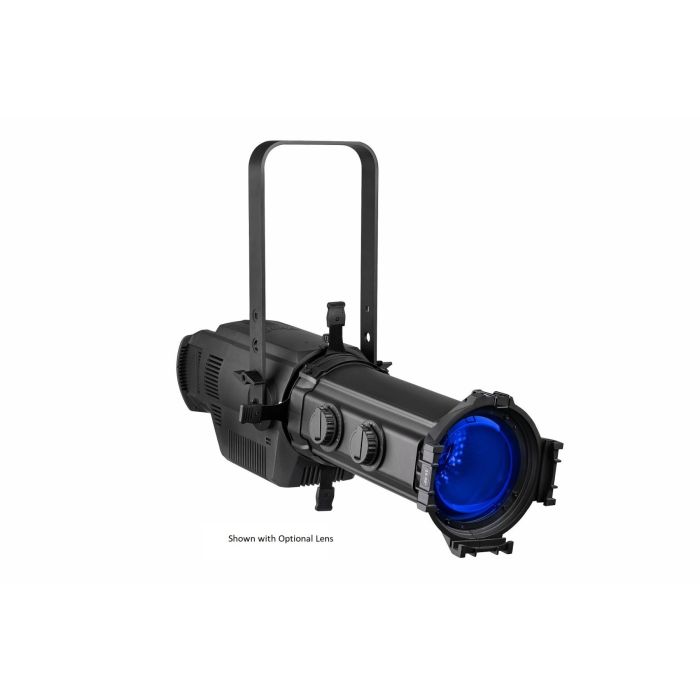

Martin ELP CL IP Full color LED Ellipsoidal Light Body Only
Description
Martin ELP CL IP Full Color LED Ellipsoidal Light Body Only
The Martin ELP CL IP represents three decades of Martin's lighting engineering tradition combined with contemporary LED efficiency and output. This compact ellipsoidal body delivers professional-grade illumination in a package designed for both permanent theater installations and temporary outdoor deployments, with ergonomic Danish engineering that prioritizes ease of focus and reliable operation in demanding environments.
Optical Performance & Output
Output reaches 6,900 lumens with 85 CRI in High Output mode or 5,900 lumens with 90 CRI in High Quality mode, both at a color temperature of 6,000K open white. The fixture employs 91 X RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber) with a color temperature range of 2000–10000K and minimum LED lifetime of 30,000 hours to 70% output, delivering consistent color rendering and reliable long-term operation.
Durability & Environmental Protection
This fixture meets IP65 compliance for moisture resistance and complete dust protection, with C3 corrosion resistance for reliable performance in temporary outdoor applications. Heat dissipation is managed at 1000 BTU/hr at full intensity, and flicker-free operation ensures consistent output on and off camera.
Key Features
- 6,900 lumens, 85 CRI (High Output mode); 5,900 lumens, 90 CRI (High Quality mode)
- 91 X RGBAL Lexeon Rebel LEDs with 2000–10000K color temperature range
- Gear-based Fine Focus (industry-first design) with no refocusing drift or slipping
- Fast Focus feature enables full output without DMX data flowing to fixture
- 16-bit dimming with 4 selectable curves and 26 industry-standard color presets
- IP65-rated Neutrik PowerCON TRUE1 TOP AC input/thru and 5-pin XLR DMX/RDM in/thru
- AC power: 100–240 V, 50/60 Hz; typical consumption 259 W (idle 5 W)
- Available in 19, 26, 36, and 50-degree beam angles with compatibility for Martin zoom lenses (15–30° and 25–50° ranges)
- Available in black and white housing options; 159 x 159 mm color frame size
- 30,000-hour minimum LED lifetime; flicker-free operation for camera applications
- Dimensions: 644 mm L × 255 mm W × 255 mm H (527 mm with bracket); Weight 12.2 kg
- Compatible with third-party gel frames, gobo holders, rotators, and standard lens tubes
The Martin ELP CL IP combines superior optics, vivid color rendering, and robust environmental protection—making it the leading LED ellipsoidal in its class for both theater and temporary outdoor applications.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin ELP CL IP is a professional LED ellipsoidal light that delivers 6,900 lumens with exceptional color rendering (up to 90 CRI) and a full 2000–10000K color temperature range, making it ideal for live venues, touring productions, and permanent theater installations. Built with IP65 weather protection, C3 corrosion resistance, and industry-leading gear-based fine focus technology, it handles demanding outdoor gigs and rental deployments without drift or maintenance headaches. Choose this fixture for reliable, consistent stage and outdoor lighting that integrates seamlessly with standard DMX control and third-party accessories.
Frequently Asked Questions
What does the 'Body Only' specification mean?
This listing includes the fixture body, LED engine, and all internal optical components. Lens tubes, color frames, gobos, and external accessories must be ordered separately; the fixture is compatible with Martin zoom lenses (15–30° and 25–50° ranges) and standard third-party gel frames and gobo holders.
What beam angles are available?
The Martin ELP CL IP is available in four fixed beam angles: 19, 26, 36, and 50 degrees. Alternatively, you can choose compatible Martin zoom lenses to cover 15–30° or 25–50° ranges for flexible beam adjustment.
How does this fixture perform outdoors or in harsh environments?
This fixture meets IP65 compliance for dust and moisture protection, includes C3 corrosion resistance for temporary outdoor deployments, and operates flicker-free for on-camera use. Heat dissipation is managed at 1,000 BTU/hr, and the LED lifetime is rated to 30,000 hours at 70% output, ensuring reliable performance in demanding conditions.
What control options and power requirements does it require?
The fixture uses standard 5-pin XLR DMX/RDM in and thru connectors for control, with 16-bit dimming and four selectable curves plus 26 color presets. It requires 100–240 V AC, 50/60 Hz power via Neutrik PowerCON TRUE1 TOP connector, drawing 259 W at full intensity (5 W idle).
What's the difference between High Output and High Quality modes?
High Output mode delivers 6,900 lumens at 85 CRI, maximizing brightness for large venues and outdoor stages. High Quality mode delivers 5,900 lumens at 90 CRI, prioritizing superior color rendering for camera work and color-critical applications.
