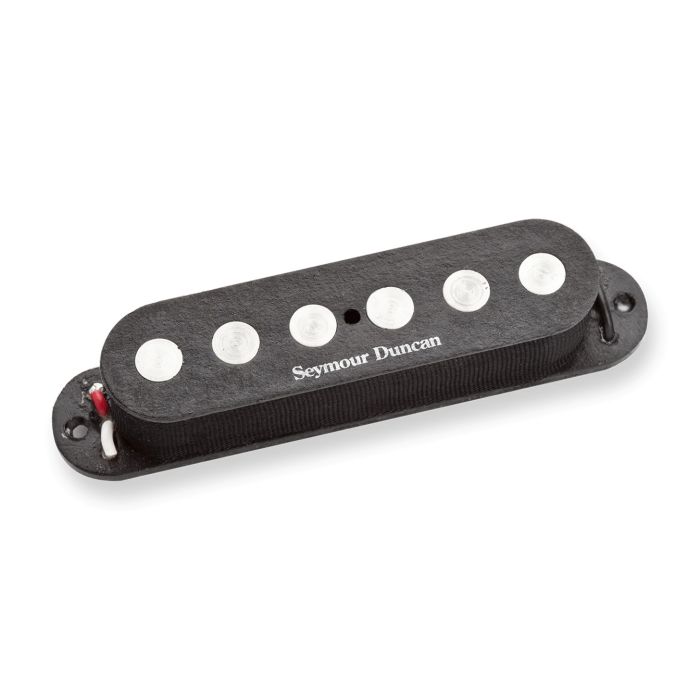

Seymour Duncan SSL-4t Quarter-Pound Flt Strat RwRpTap Pickup

Seymour Duncan SSL-4t Quarter-Pound Flt Strat RwRpTap Pickup

The SSL-4t Quarter-Pound delivers a punchy, articulate single-coil voice with genuine output and presence that cuts through a live mix without sacrificing clarity. This tapped design gives you two distinct output levels from a single pickup, making it adaptable across different venues, amp settings, and playing styles. Hand-built with traditional construction methods, this pickup bridges vintage character with modern stage reliability.

Tone & Output Characteristics

The dual-output design provides 6.9 kΩ DC resistance in tapped mode and 13.3 kΩ when running full output, allowing you to switch between focused, defined tones for precision work and more aggressive, driven response for pushing through a band mix. With a resonant peak of 5.5 kHz tapped and 4.4 kHz full, this pickup emphasizes midrange presence and definition across both settings, cutting leads and holding solid rhythm definition on stage.

Design & Construction

Built on Alnico V 0.25" rod magnets with a flat, oval Forbon bobbin design for authentic single-coil compatibility, this pickup maintains traditional Strat form factor while delivering modern performance and road durability. The 3-wire construction enables custom switching between output levels, and hand-dipped lacquer coating combined with wax potting ensures reliability and hum rejection in live environments.

Key Features

• Tapped and full-output modes via 3-wire construction
• DC Resistance (Tapped): 6.9 kΩ
• DC Resistance (Full): 13.3 kΩ
• Resonant Peak (Tapped): 5.5 KHz
• Resonant Peak (Full): 4.4 KHz
• Alnico V 0.25" rod magnets
• Oval Forbon flatwork bobbins for single-coil compatibility
• Hand-wound, lacquer-dipped, and wax-potted construction
• EQ curve: Bass 5 / Mid 4 / Treble 6
• Single-conductor PVC cable included

This Quarter-Pound SSL-4t combines premium construction with practical flexibility, delivering the presence and articulation gigging players depend on from a professional-grade Strat pickup.
