AMX DGX1600-ENC Enova DGX 1600 Enclosure
Description

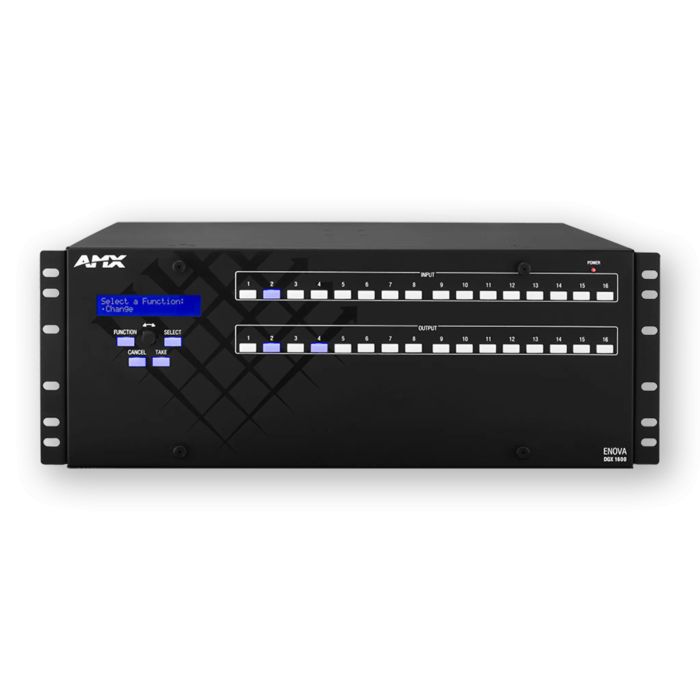

AMX DGX1600-ENC Enova DGX 1600 Enclosure
The AMX DGX1600-ENC is a professional-grade digital matrix switcher built for venues, theaters, and installed sound systems that demand bulletproof signal routing across multiple sources and displays. This integrated system combines a NetLinx NX Controller with redundant power supplies in a single chassis, eliminating the need for separate control hardware and providing the mission-critical reliability live sound operators depend on when running complex multi-room or multi-zone installations.
Switching Architecture & Signal Routing
The 16x16 maximum matrix configuration supports up to four video input boards and four video output boards with four connections per board, delivering flexible topology options for complex AV ecosystems. Combined with integrated redundant power supplies and hot-swap module replacement capability, this architecture keeps signal flow uninterrupted—no downtime during load-in, soundcheck, or service swaps.
Video & Audio Format Support
Full support for 4K and Ultra High Definition (UHD) content alongside analog and digital signals—including HDMI/HDCP—accommodates both legacy and modern equipment in unified installations. Extended signal transmission distances up to 300 meters over multimode fiber and 10 kilometers over single-mode fiber enable distribution across large facilities without signal degradation, ideal for theater runs, broadcast venues, and sprawling corporate installations.
Key Features
- 16x16 maximum matrix switching configuration
- Integrated NetLinx NX Controller with built-in management processor
- Redundant power supplies for continuous operation
- 4K and Ultra High Definition (UHD) content support
- HDMI/HDCP digital video and audio compatibility
- Analog and digital audio/video signal support
- Signal transmission up to 300 meters (multimode fiber) and 10 km (single-mode fiber)
- Hot-swap module replacement without system shutdown
- 1x Gigabit LAN RJ-45, 1x mini-USB Type B, and 1x RS-232 DB-9 management connectivity
- 3D content support with auto-negotiation and DHCP compatibility
- RoHS, UL 60950-1, and WEEE standards compliance
The DGX1600-ENC delivers broadcast-grade switching performance with built-in redundancy and extensive format support, making it the backbone for high-reliability AV distribution in touring systems, permanent installations, and demanding live-sound environments.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX DGX1600-ENC is a professional 16x16 digital matrix switcher built for large-scale AV installations, broadcast facilities, and live event production where mission-critical reliability and seamless signal routing are non-negotiable. It integrates a NetLinx controller, redundant power supplies, and hot-swap modules in one chassis, eliminating separate hardware and ensuring zero downtime during critical events. Choose it when you're routing complex multi-source feeds across extensive venues or facilities that demand 4K/UHD support, long fiber runs, and the rock-solid dependability your show or installation can't afford to lose.
Who This Is For
Great for
- ✓ Large-scale AV installation
- ✓ Enterprise conferencing
- ✓ Live event production
- ✓ Broadcast facilities
Not the best pick for
- – Home theater
- – Small venue live sound
- – Personal studio recording
Skill level: Professional
Frequently Asked Questions
What does the 16x16 maximum matrix configuration mean?
The DGX1600-ENC can support up to 16 video inputs and 16 video outputs simultaneously through four input boards and four output boards (four connections each), allowing you to route any input signal to any output without limitations. This flexible topology accommodates complex AV ecosystems in large facilities, broadcast centers, and live event production.
Can this switcher handle both old and new video formats?
Yes. The DGX1600-ENC supports 4K and UHD content as well as analog and digital signals including HDMI/HDCP, so it integrates legacy equipment alongside modern displays and sources in a single unified installation.
How far can I run video signals from this switcher?
Signal transmission distances reach up to 300 meters over multimode fiber and 10 kilometers over single-mode fiber, enabling distribution across large facilities and campuses without signal degradation.
What makes this switcher mission-critical for enterprise environments?
Redundant power supplies, hot-swap module replacement capability without system shutdown, and an integrated NetLinx NX Controller eliminate single points of failure and service interruptions—essential for broadcast, enterprise conferencing, and live events where uptime is mandatory.
What management and connectivity options are included?
The DGX1600-ENC provides 1x Gigabit LAN RJ-45, 1x mini-USB Type B, and 1x RS-232 DB-9 for management connectivity, supporting DHCP and auto-negotiation for seamless integration into existing network infrastructures.
